automatic pocket welting machine

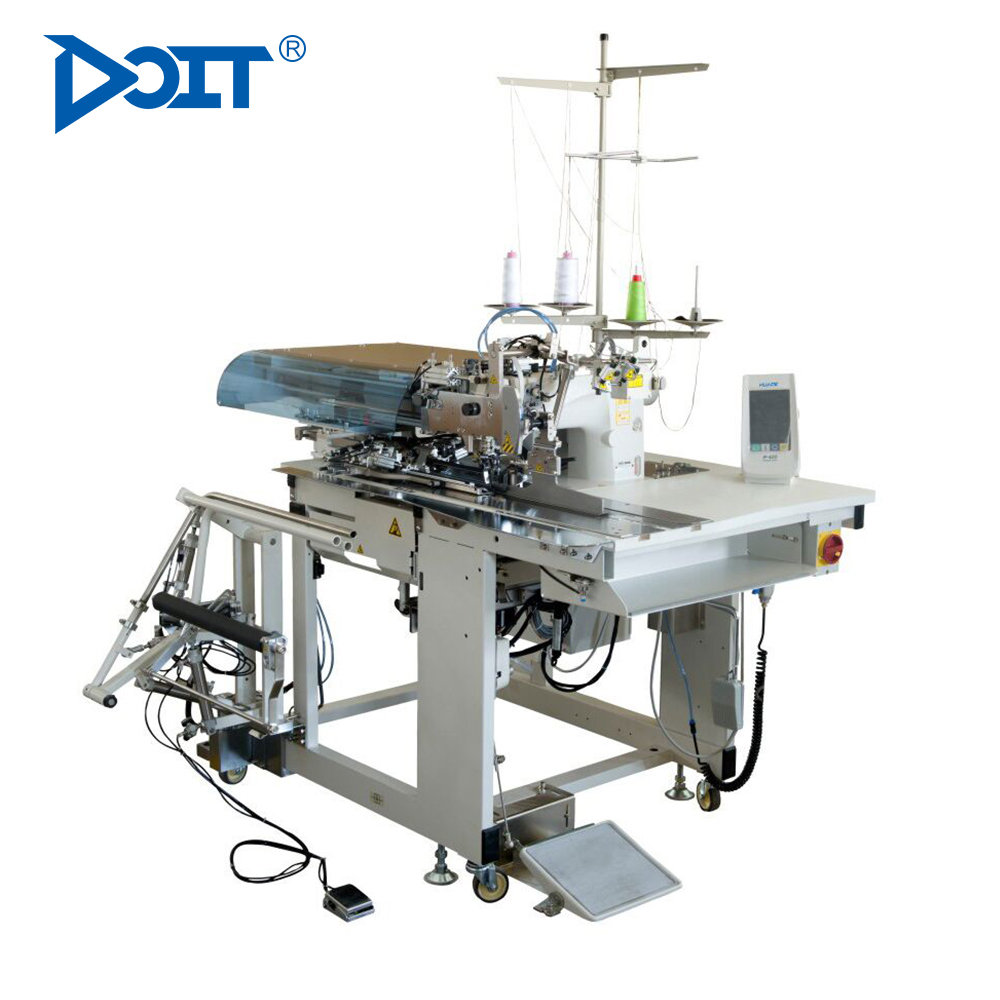

Automatic pocket welt lockstitch sewing machine

DT 895B
Streamline your pocket welt sewing process with the Juki automatic pocket welt lockstitch sewing machine.
Quantity:
Contact Now
add to cart

Stitch:

Product Feature:

 Product introduction

Automatic pocket welt lockstitch sewing machine

1.The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants.

2.Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.

3.Increased adjustable range of sewing lengths (min. 18mm to max. 220mm)

 Product specifications

Automatic pocket welt lockstitch sewing machine

Model

DT-895B

DT-896N

Bag cover

Parallel flap

Parallel and oblique flaps

Sewing speed

Max. 3,000sti/min (1000~3,000sti/min)

Kind of welts

Parallel double welt,
Parallel single welt,
(With/without flaps)

Parallel double welt,
parallel single welt,
Slanted double welt,
Slanted single welt,
(With/without flaps)

Stitch Length

2.5mm (2.0~3.4mm)

 Stitch length (fastening stitching)

 stitching) Condensation stitching: Standard 1.0mm (0.5〜1.5mm)
Back-tack stitching: Standard 2.0mm (0.5~3.0mm)
Condensation / back-tack stitching

Corner-knife cutting adjusting method

Mechanical adjustment

Electronic adjustment

Needle

ORGAN DPx 17# 16 (#14 - #18)

Number of independent sewing patterns

99 patterns (999 patterns when a CF memory card is used)

Number of cycle sewing patterns

20 Patterns

Number of alternate sewing patterns

20 Patterns

Machine head

2-needle lockstitch machine

2-needle, lockstitch machinewith organized split needle bar

Needle gauge

8、10、12、14、16、18、20mm
22、24、26、28、30、32mm

8、10、12、14、16、18、20mm

Languages supported for operation panel

Espanol,Italiano, Franqais, Deutsch, Portugues, Turkle, Viet nam,御MOL Indonesia, Py c c k n w

 Increased productivity

In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement jump and forwarding)of the clamp foot achieves a shorter machine time.

Welting process without flaps

Welting process with flaps .

1900 ~ 2300 pcs/8hours

1600 ~ 1900 pcs/8hours

 The corner knives are easily adjustable

The corner knives, which can be drawn out in the entire knife unitis adopted. The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce materialthrusting, thereby achieving material cutting with accuracy.

 Newly developed stacker which is able to handle small articles

With the clamp bar stacker, the machine is able to handle materials with a shortest distance of 250 mm from its edge to the pocket. A stacking sensor is also provided as standard to prevent stacking errors.

 Highly-visible and easy-to-use large color LCD touch-panel

The graphic display and touch panel on the large color LCD help dramatically increase ease of use. Basic operations are carried out with the graphic screen and pictogram buttons. Guidance messages are given in your selected language.Now the USB-ready main body of the sewing machine uses many different kinds of media :The memory storage capability of the main body of the sewing machine has been dramatically enhanced. Now the USB-ready main body of the sewing machine uses many different kinds of media. In addition to the Compact Flash card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (SD (Secure Digital Card), CF (Compact FIash), SM (Smart Media) etc.)by means of a USB thumb device and a card reader.
