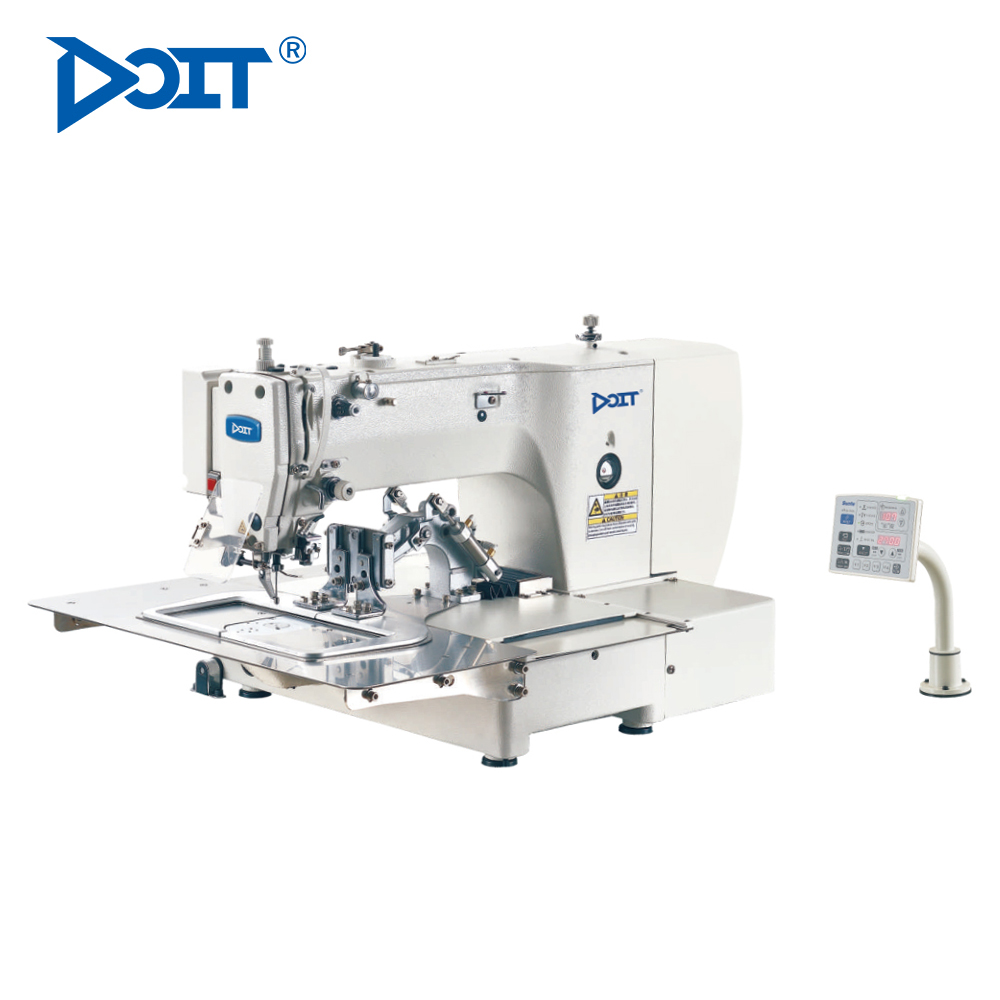

DT 1310/2010/3020 Direct Drive pattern sewing machine

型号Model

DT-1310

DT-2010

DT-3020

缝制范围(X*Y)
Sewing area (X*Y)

最大130*100mm
Max.130*100mm

最大 200*100mm
Max.200*100mm

最大 300*100mm
Max.300*100mm

使用缝纫机
Sewing machine

平缝花饰缝纫机( 2倍旋梭)
Lock stitch pattern tacking machines

线迹
Stitch form

单针平缝
Single needle lock stitch

最大缝纫速度
Max.sewing speed

2,700针/分钟
2,700 sti/min

送布装置
Feed mechanism

间歇送布(脉冲马达驱动)
Intermittent feed (pulse motor drive)

针距
Stitch length

0.05- 12.7mm

最大针数
Max.number of stitches

20,000针/1个图案
20.000 stitches per pattern

压脚驱动
Work clamp drive

脉冲马达驱动气动驱动方式
Pulse motor drive/Pneumatic drive

气动驱动方式
Pulse motor drive

气动驱动方式
Pulse motor drive

压脚高度
Work clamp lift amount

脉冲马达驱动Pulse motor drive:最高Max.25mm
气动驱动方式Pneumatic drive:最高Max..30mm

最高.30mm
Max.30mm

最高.30mm
Max.30mm

压脚
Work clamp

一体压脚:Unit work clamp
分离式压障Separate work clamp

一体压脚:Unit work clamp
分离式压障:Separate work clamp

一体压脚:Unit work clamp

间歇压脚上升量
Height of stepping presser foot

22mm

19.5mm

22mm

间歇压脚行程
Stepping presser foot stroke

0或2-10mm (出厂设置: 3mm)
2- 4.5mm, 4.5.10mm or 0 (Factory setting :3 mm)

旋梭
Hook

旋梭(标准旋梭是选购件)
Double-capacity shuttle hook (Standard capacity hook: Option)

扫线装置
Thread wiper

标准装备
Standard equipment

切线装置
Thread trimmer

标准装备
Standard equipment

数据存储方式
Data storage media

闪存(使用CF卡可任意缝纫图案) .或者通过打板器使用USB
Flash memory (Sewing patterns can be added using CF card) , or USD trough LCD Programmer

马达
Motor

AC伺服马达550W
AC servo motor 550W

气压
Air pressure/consumption

0.5 MPa, 1.7L/min
