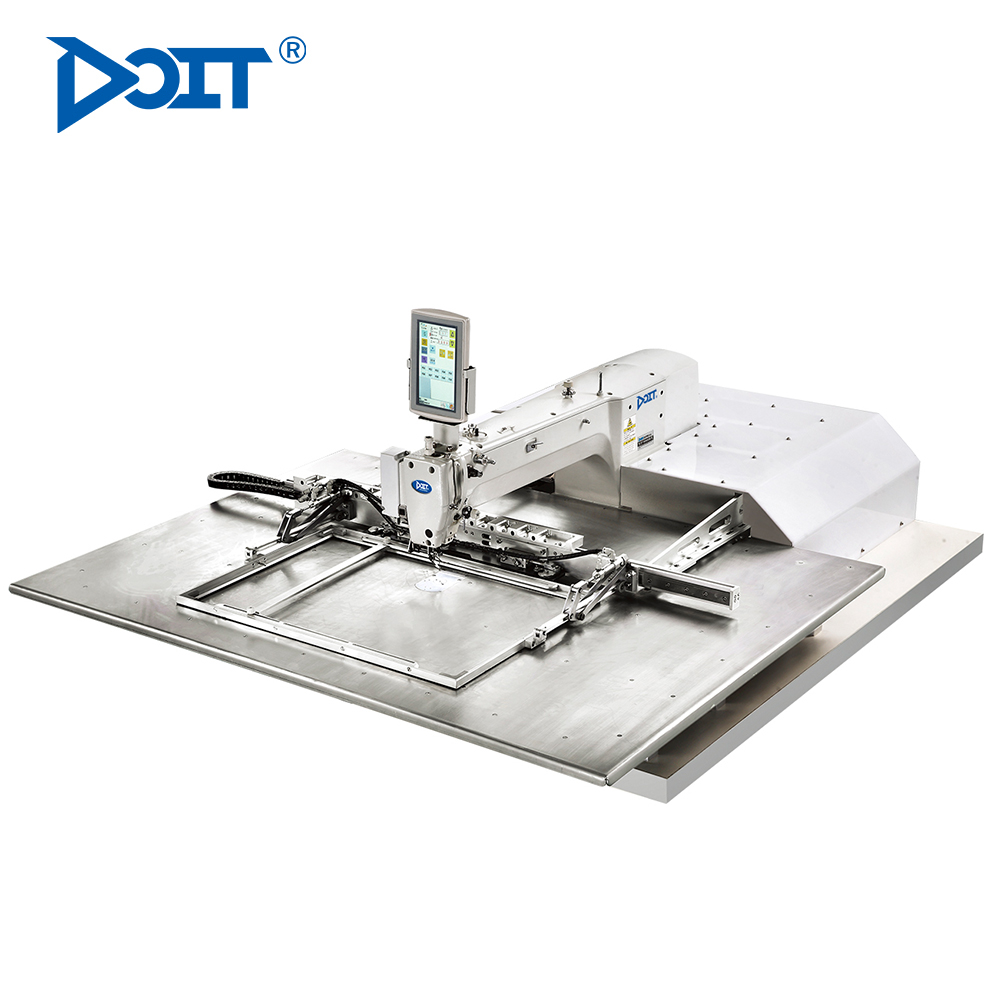

Direct drive electronic pattern sewing machine
Product Feature:
Product introduction
Direct drive electronic pattern sewing machine
1.The big size electronic pattern sewing machine has thread-broken detector,which is used to detect broken-thread,stopping the machines as soon as it detecting broken line.
2.The machine has big sewing area:600*400mm,using for big pattern material such as bags,air bags,dress patterns,pattern trousers ect.
Product specifications
Direct drive electronic pattern sewing machine
Model | DT-6040 |
Name | Direct drive electronic pattern sewing machine |
Sewing area(X*Y) | 600*400MM |
Stitch form | Single needle lock stitch |
Max sewing speed | 2800sti/min |
Feed mechanism | Intermittent feed(pulse motor drive) |
Stitch length | 0.05-12.7mm |
Max number of stitches | 20000 stitches per pattern |
Work clamp drive | Pulse motor drive |
Work clamp lift amount | Max 30mm |
Work clamp | Unit work clamp |
Height of stepping presser foot | 22mm |
Stepping presser foot stroke | 2-4.5mm,4.5-10mm or 0(factory setting:3mm) |
Thread wiper | Standard equipment |
Thread trimmer | Standard equipment |
Data storage media | USB |
Motor | AC servo motor 550W |
Air pressure/consumption | 0.5 Mpa 1.7L/min |
