Mattress Quilting Machines

DT 300U High speed flat bed chainstitch sewing machine

DT 300U
Quantity:
Contact Now
add to cart

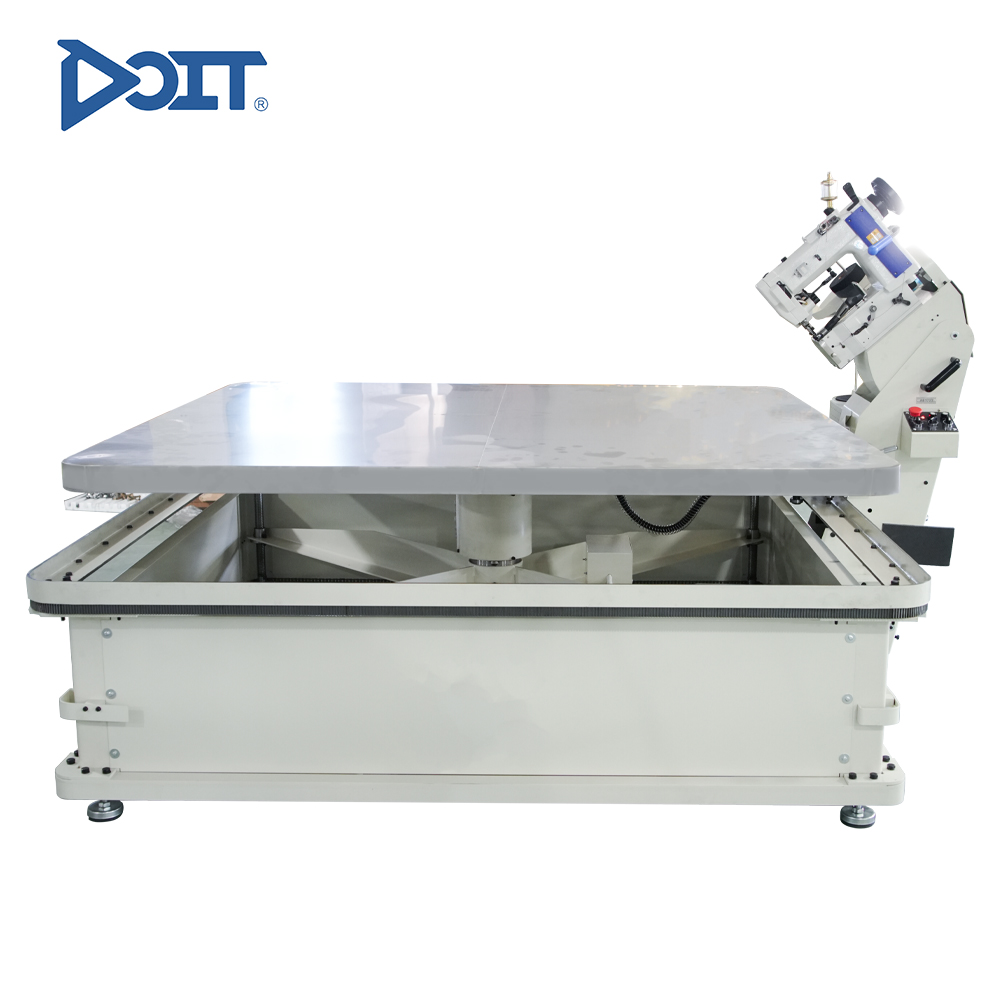

Mattress Tape Edge Machine is mainly used for taping edge of mattress panel and soft cushion. It adopts advanced Servo motor drive system, high efficiency, easy operate and stable performance. It is the perfect equipment for manufacturing mattress enterprises.
Technical characteristics:

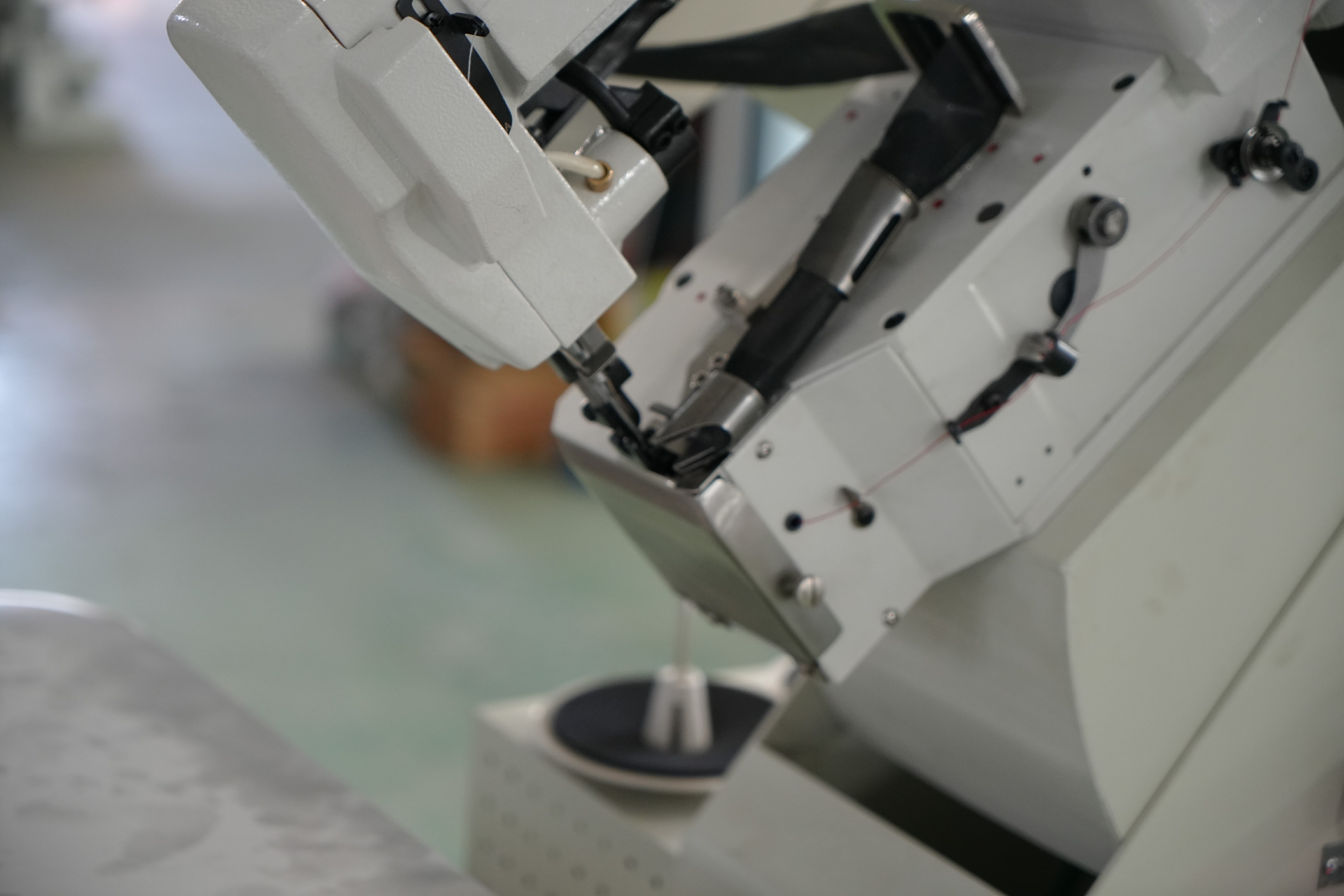

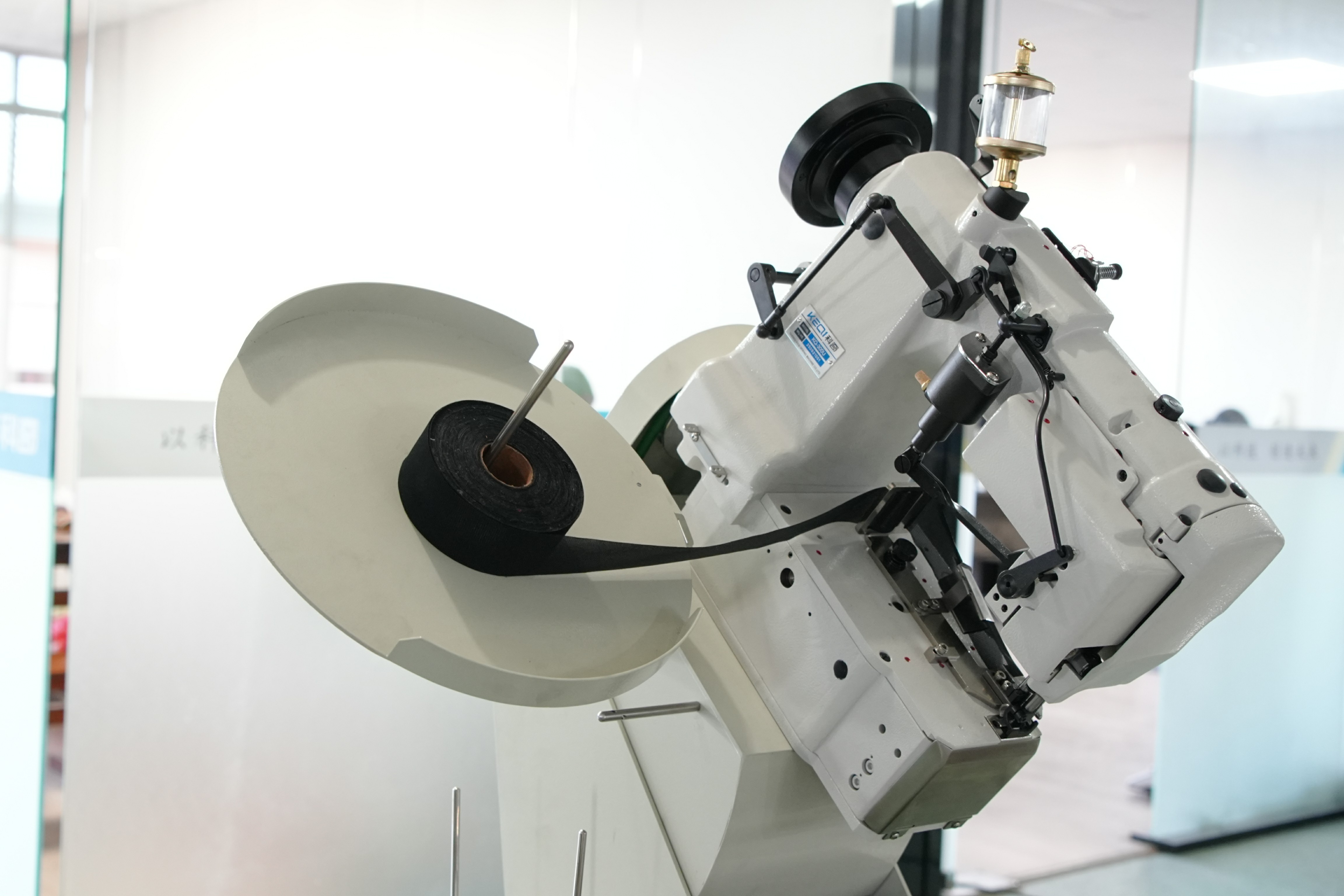

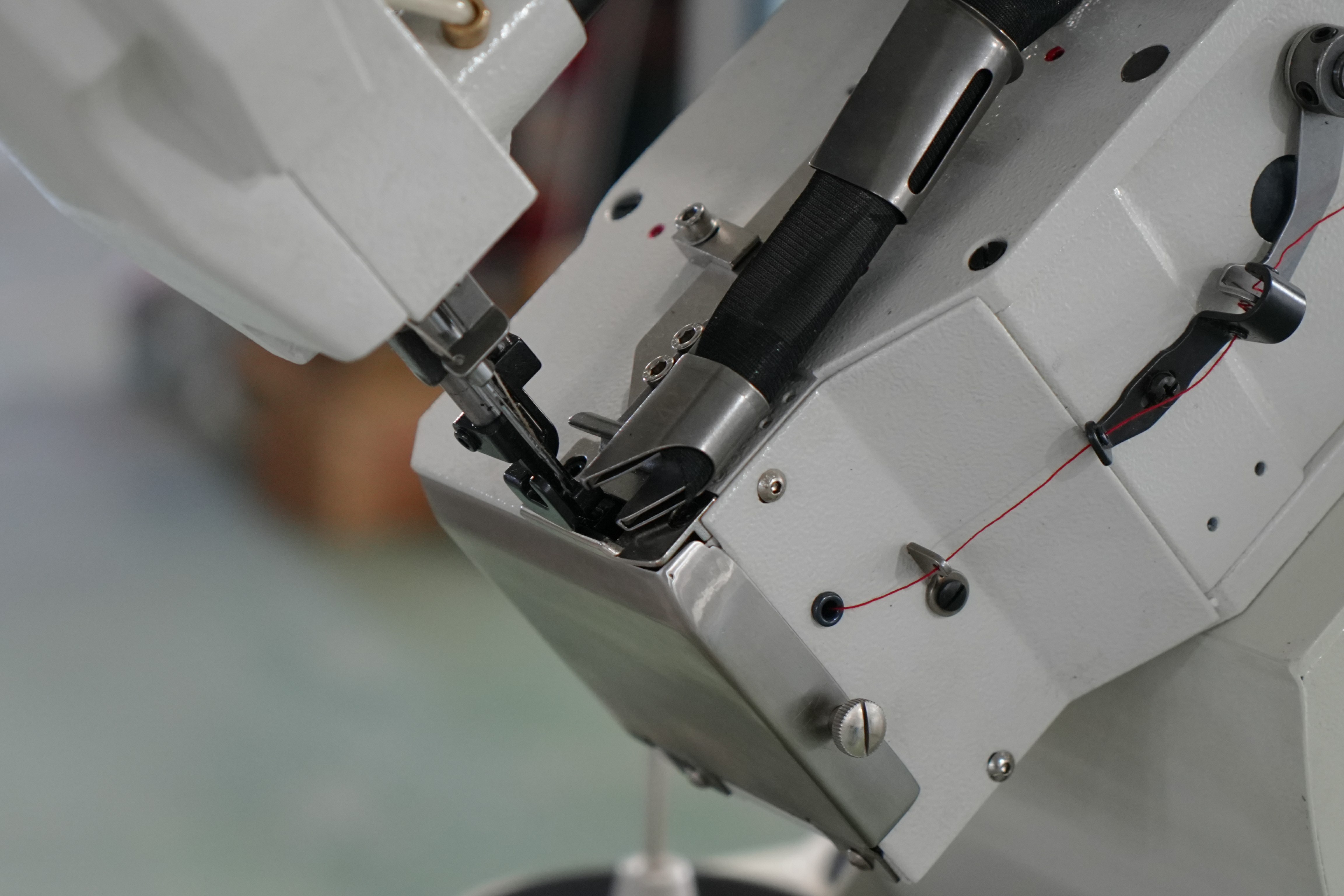

1. It adopts advanced 300U chain stitch high-speed sewing head;
2. Electric lift working table, manual adjustable sewing head;
3. Sewing, sliding guide move adopt variable frequency stepless speed regulation, speed auto slowdown at corner;
4. The stitches are straight, even and beautiful;
5. Rustless steel table;
6. Stands set the level adjustment device;
7. Built-rotating electrical power supply, no special requirement for installing space;
8. Stable performance, low vibration and noise.

Productivity16-18 pcs/HOUR
Sewing headChain Stitch,Lock stitch
Working angle of the sewing head35-55
Lifting of working tableelectric
Table Lifting range0-150mm
Carriage speed (m/min)5.5-16
Sewing head speed (r/min)1100 ~ 3000
Motor typeThree-phase motor
Total power1.2kw
Machine size2380X1650X1400mm
