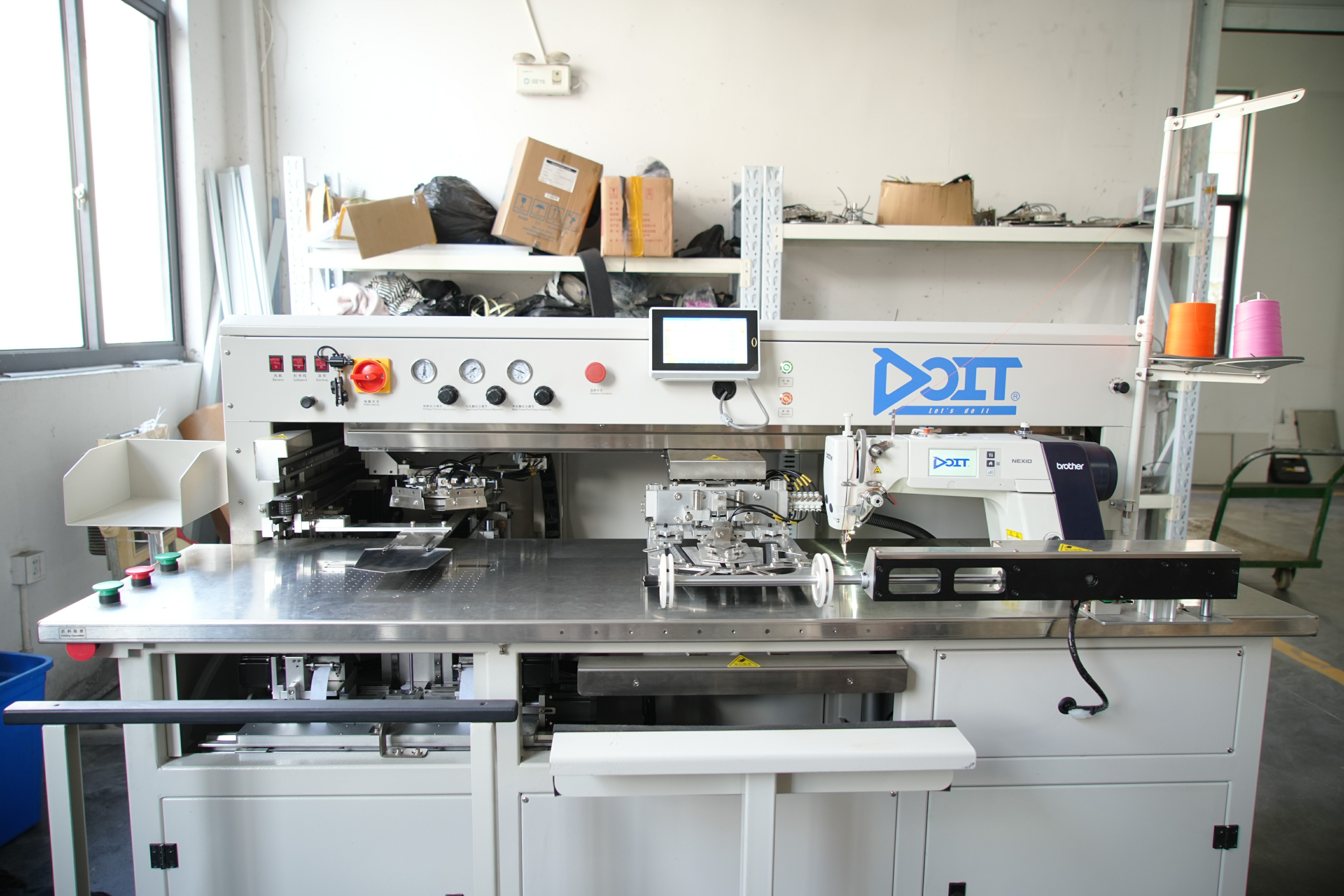

Automatic pockets attaching sewing machine

DT 3020TD Automatic pocket attach sewing machine

DT3020TD
Quantity:
Contact Now
add to cart

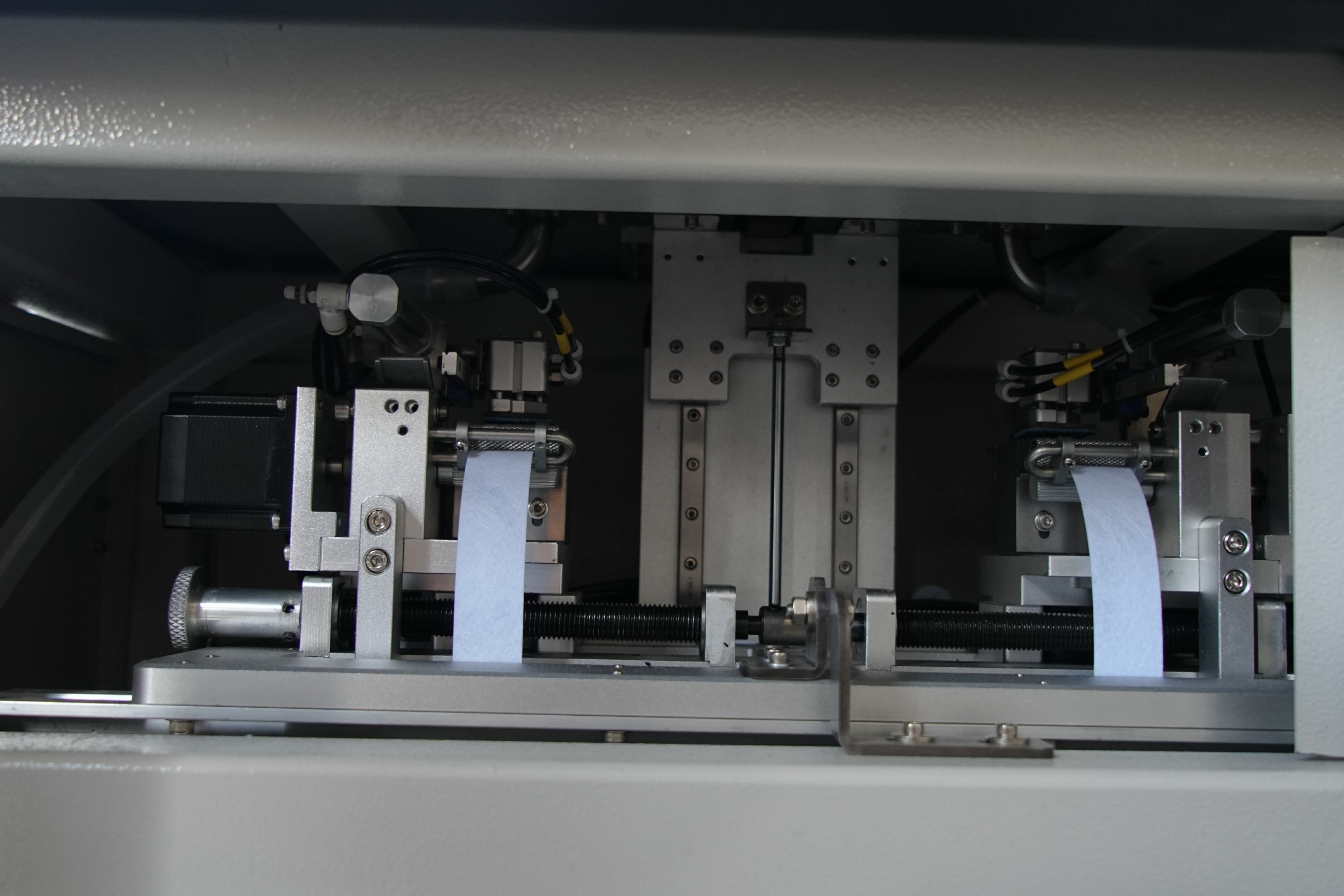

P1 Automatic pockets attaching sewing machine with the felt feeding device
P2 Automatic pockets machine with one free mold

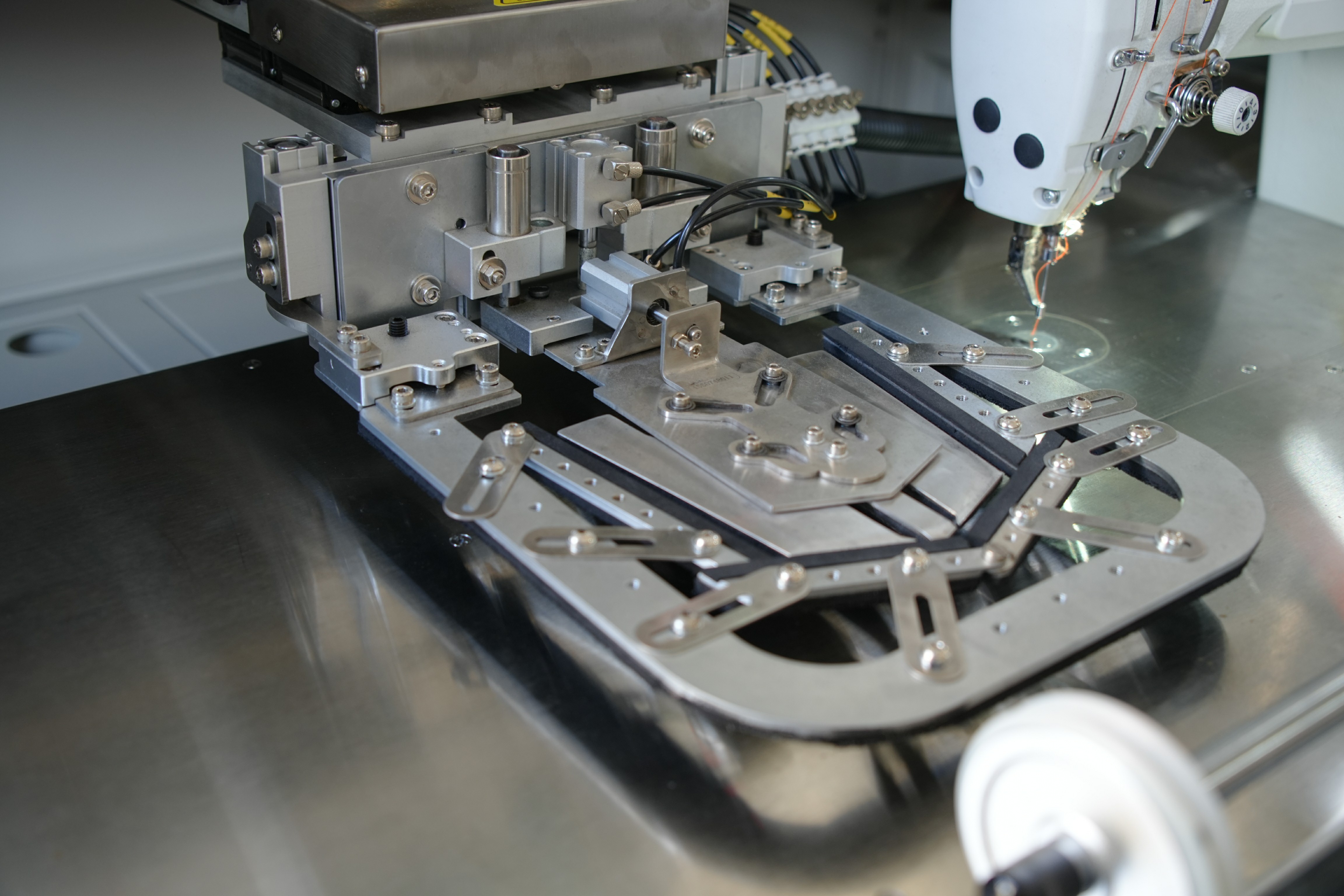

P3 Easy molds changing on the automatic pockets sewing machine
P4 Automatic pockets sewing machine with intelligent touch screen with SMARTEER system
P5 Clear and easy buttons for operation on the pockets attaching machine

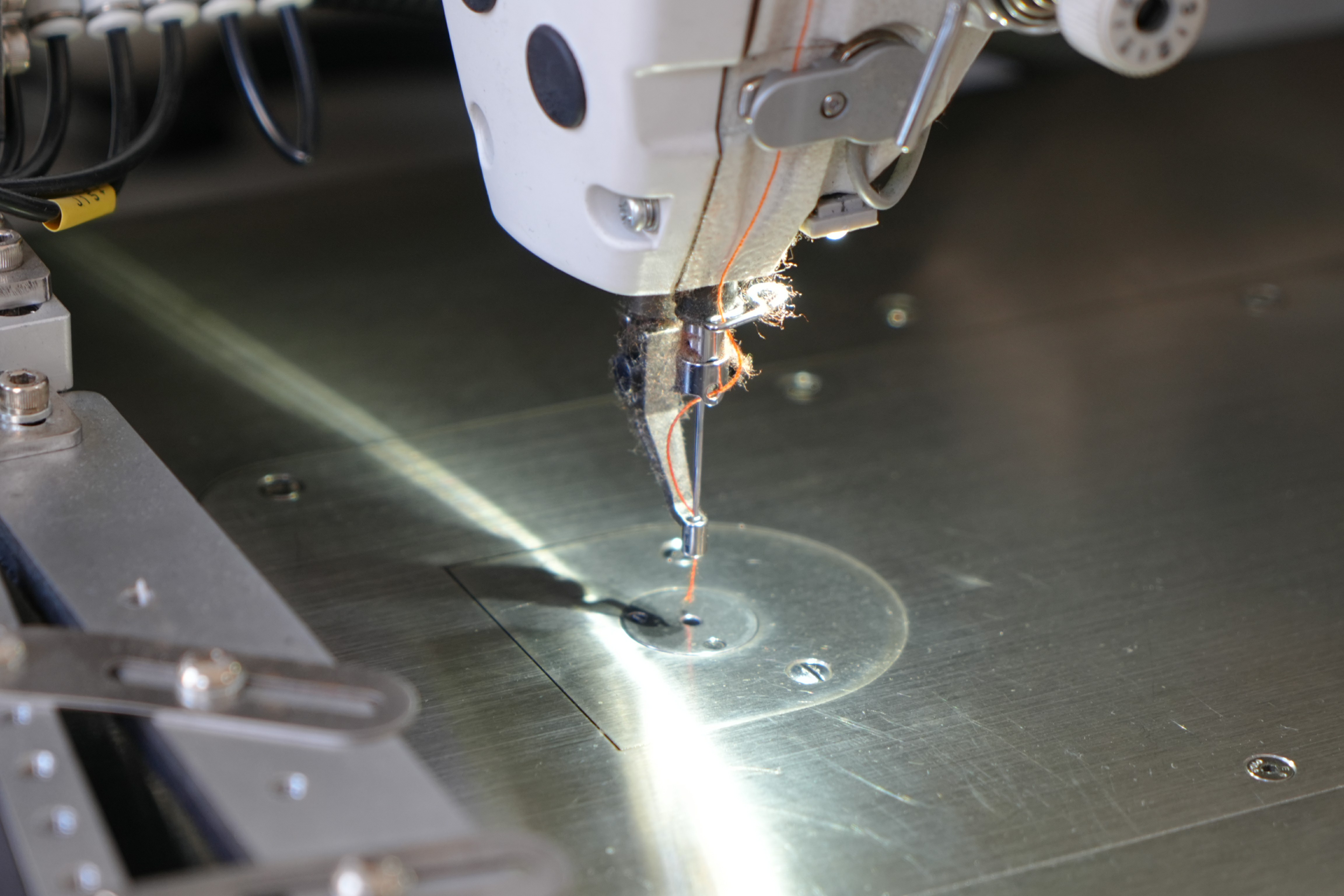

P6 Automatic pockets sewing machine with BROTHER type machine head Brother machine head for heavy duty

ModelDT 3020TD
Max Sewing Speed3500 rpm
Sewing Area220 X 250 mm
Sewing Machine MotorAc Servomotor
Power Consumption2 Kw/h
Power Supply Voltage380 V 3 phase + PE
Pneumatic Supply7 Bar
Air Consumption8 L/cycle



Applications of DT 3020TD Automatic Pockets Attaching Sewing Machine


Suitable for denim patch pockets and children's clothing pockets. Maximum pocket size: 220mm × 250mm.Pocket stitching (light fabric stitching) is mainly applicable to shirts and light knitted series, capable of adapting to various shapes such as round corners, squares, triangles, and asymmetrical polygonal pockets for pocket attachingsewing.

1.Customized templates are designed based on the customer's pocket types and sizes, with simple and convenient installation and adjustment, enabling rapid pocket folding without preheating or ironing. The machine can sew240-300 pockets per hour, achieving an efficiency 2-3 times higher than that of hot-press pocket machines.

2.It can be optionally equipped with the most advanced Juki 9000C head, Brother 7300A head, or 311 pattern sewing machine head, which operate with minimal noise and vibration while ensuring high efficiency.

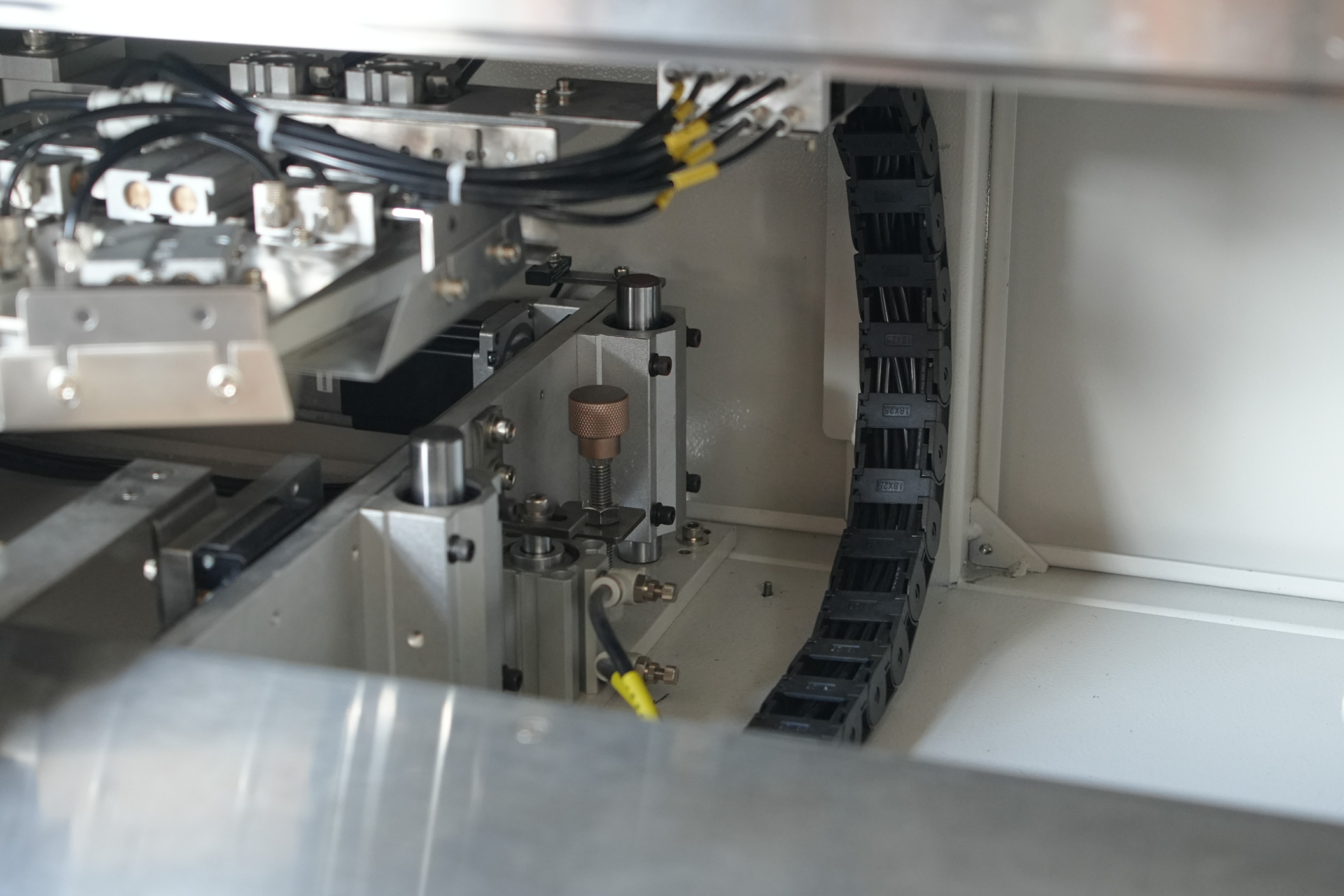

3.The feeding and pressing frame section is fully equipped with pneumatic components from the Japanese brand SMC, ensuring smooth and stable material pressing and feeding, as well as long-lasting durability.

4.The automatic material collection system employs the latest bionics-inspired cross-swing arm mechanism, characterized by its simple structure and precise, efficient movement. This design significantly reduces operator handlingtime.

5.The system is equipped with the latest Smarteer Control program, featuring an intuitive and user-friendly interface that facilitates straightforward rigidity adjustments. It includes multiple open ports for expanded functionality, while its simplified operation ensures stable and reliable command execution.



DT 3020TD Automatic Pockets Attaching Sewing Machine

Common Questions

1.Why is this sewing machine so efficient in sewin？

Traditional manual methods can complete approximately 1,000 pockets per 8-hour, while the DT 3020TD fully automatic pocket attaching machine can achieve 2,000 to 2,500 pieces in the same timeframe


2.The type of pocket mad？

It can sew various pocket types according to different process requirements: angled pockets, round pockets, and rectangular pockets, as well as pockets with logos or flaps.
It is compatible with different fabrics, including solid colors and striped/checked patterns.
The sewing range covers pockets up to 32 cm in length and 32 cm in width.


3.Laser alignment and automatic folding device？

The garment piece and pocket piece are aligned using laser technology, and the machine completes the edge folding in one step—no pre-ironing or skilled operators required


4.Mold replacement operation？
Template replacement takes only 5 minutes



5/6.What patents do you have？
The unique needle-hook separation head design features independent motors driving the needle and hook separately, with no mechanical linkage between them. This structure offers a larger sewing space, facilitates fabric transfer and material collection, and achieves sewing speeds of up to 3500 RPM.



7.Does the machine have additional functions？
Automatically collects materials after sewing, featuring a compact built-in design that minimizes space usage. The collection process is smooth, safe, and efficient.



8.Powerful Control System？
Equipped with intelligent thread break detection to reduce waste rates, an automatic hook lubrication function to prevent hook jams, and full visualization of information—including automatic production reports, alarm displays, and fault diagnostics.
