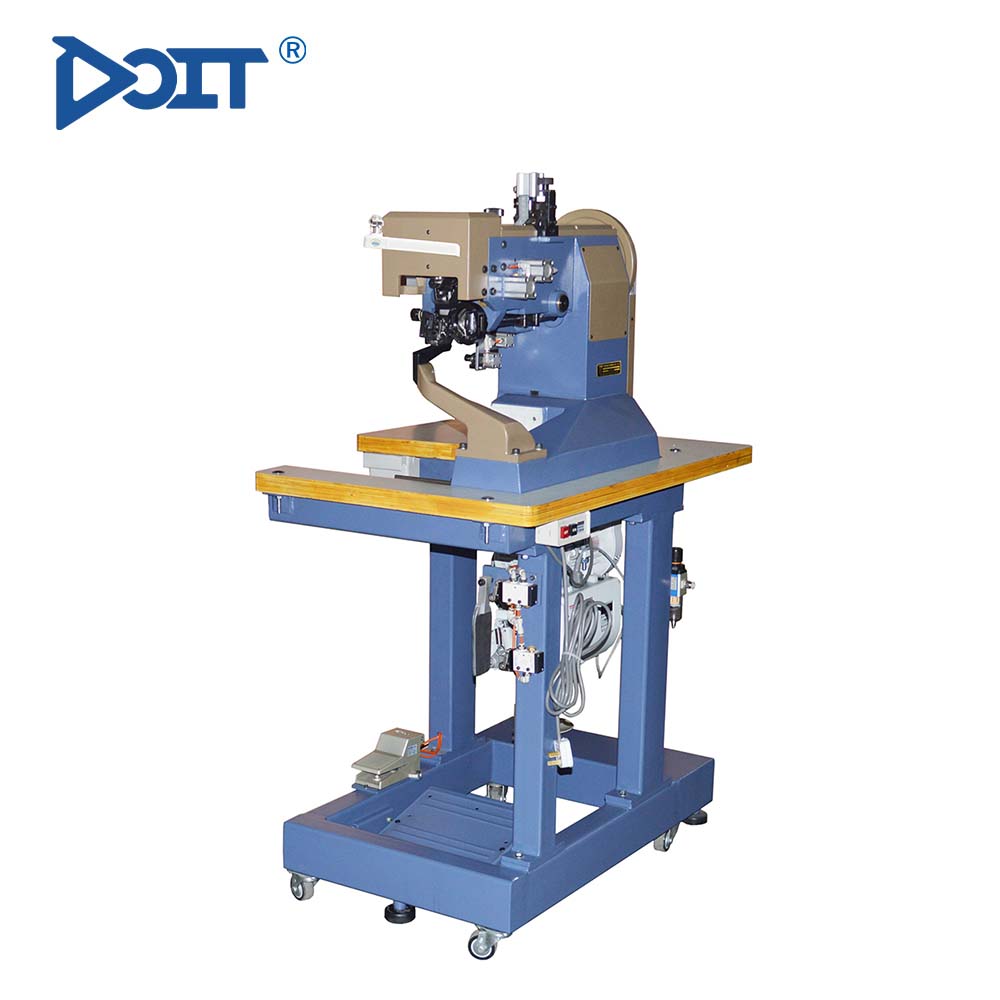

DT 747C Industrial shoe stitch machine
DT 747C
Quantity:
Application:leather shoes, Casual shoes, moccassin shoes, ....
FUNCTION: SHOE UPPER SEWING.
speed can be adjustable.
folding width can be adjustable also.
feature: more safety, no harmful to operator.
good working peformance
save power, save energy
good performance
| echnical parameter:DT 747C moccasin industrial shoe sewing machine price for sale | |
Sewing speed | Stepless speed regulating |
Sewing thickness | 4mm |
Stitch length | 4-8mm |
Sewing thread | Woven wire(Φ1-1.2mm) |
Sewing needle | DY-100(200-230#) |
Motor | 750W/ 220V one-phase 50-60hz 750W/ 380V three-phase 50-60hz |
Net weight | 210Kg |
Domestic packing gross weight | 250Kg |
Domestic packing parameter | 103*86*152(L*W*Hcm) |
Exportation packing gross weight | 290Kg |
Exportation packing parameter | 103*88*160(L*W*Hcm) |
| Characteristics: | |
1.After years of research and improvement, the machine of the hardware and software are already mature stable and convenient to maintain. | |
2.All parts were manufactured by HAAS CNC machines, high precision machining parts. | |
3.Through changing the ox horn or parts can sewing S/B/C and other six different help surface suture way. | |
4.Presser foot and advanced needle agencies by pneumatic system to control realization. | |
5.Adopt servo motor, speed can be flexible, stop the needle position by computer control. | |
6.In the event of an emergency, the machine stops running to prevent damage when the threads are jammed. | |
