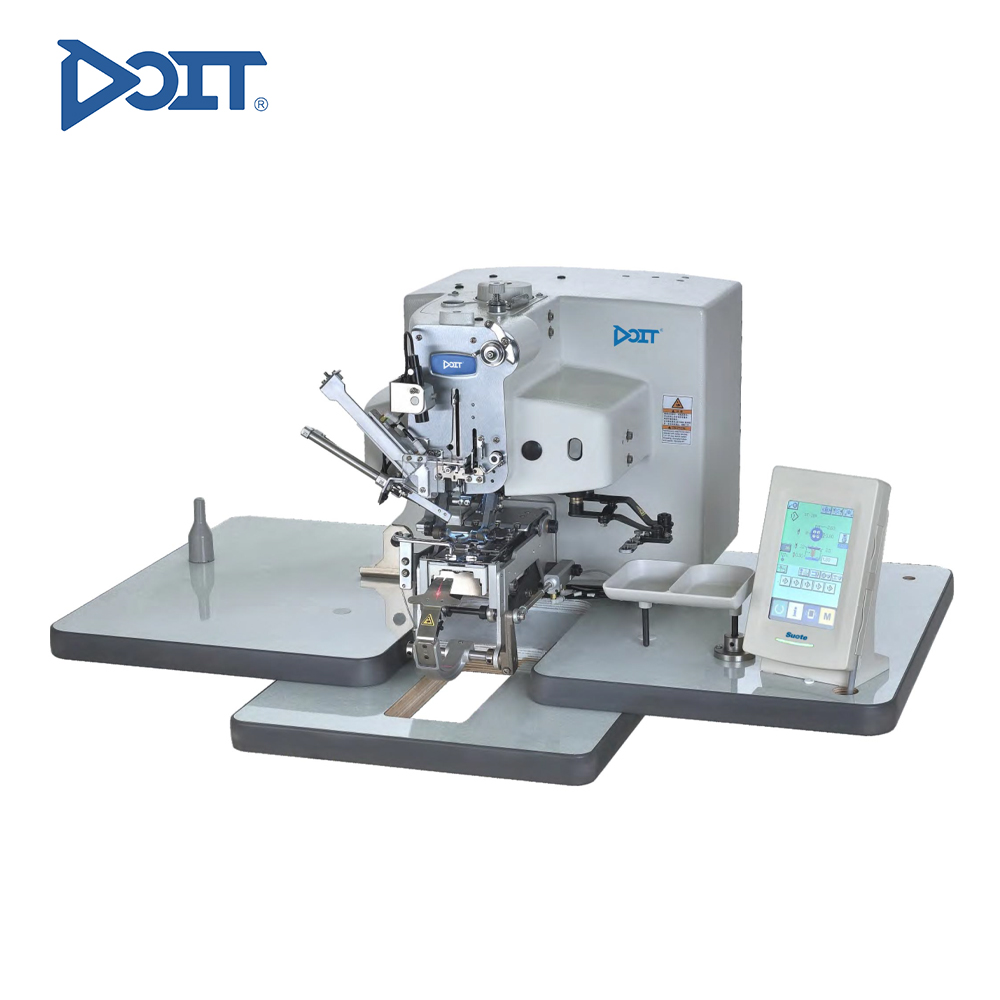

DT 8289 Computerized button neck wrapping machine
DT 8289
Quantity:
DT 8289 Computerized button-nect sewing & wrapping machine
1. Adapt exclusive electronic thread tension control device to achieve:
1) Improved responsiveness;
2) Allows for fine tension settings based on fabric variations;
3) Tension can be set separately for attaching and wrapping buttons;
4) Each sewing pattern can be stored.
2. Cycle sewing:
1) Available for continues sewing on double-breast buttons;
2) Sewing diagram can be showed on operation panel. Button quantity, position, and sewing order can be set;
3) Can load two types buttons in a single sewing cycle;
3. Suits for flat button, shank button, covered button and dual snap button.
Model | DT 8289 | |
Stitch type | Single-thread chain stitch | |
Sewing speed | Max. | 1800 rpm (wrapping), 1200 rpm (sewing) |
Normal | 1500 rpm (wrapping), 1000 rpm (sewing) | |
Button diameter | Button sewing with visible stitch: 8~38mm Button sewing and wrapping: 8~32mm Dual snap button: 8~25mm | |
Setting scope for basic button | Distance between buttonholes: 1.5~6.0mm Height of button-neck wrap: 1.5~10.0mm Number of cross-over sewing stitches: 2~64(in increments of 2) | |
Storage quantity of pattern | Max.99 patterns | |
Cycling quantity of pattern | Registered patterns: 20pcs; 30 patterns for one cycle | |
Operation panel language | Chinese, English, Vietnamese, Korean, Indonesian, Russian, Japanese, Spanish, Italian, French, German, Portuguese, Turkish | |
