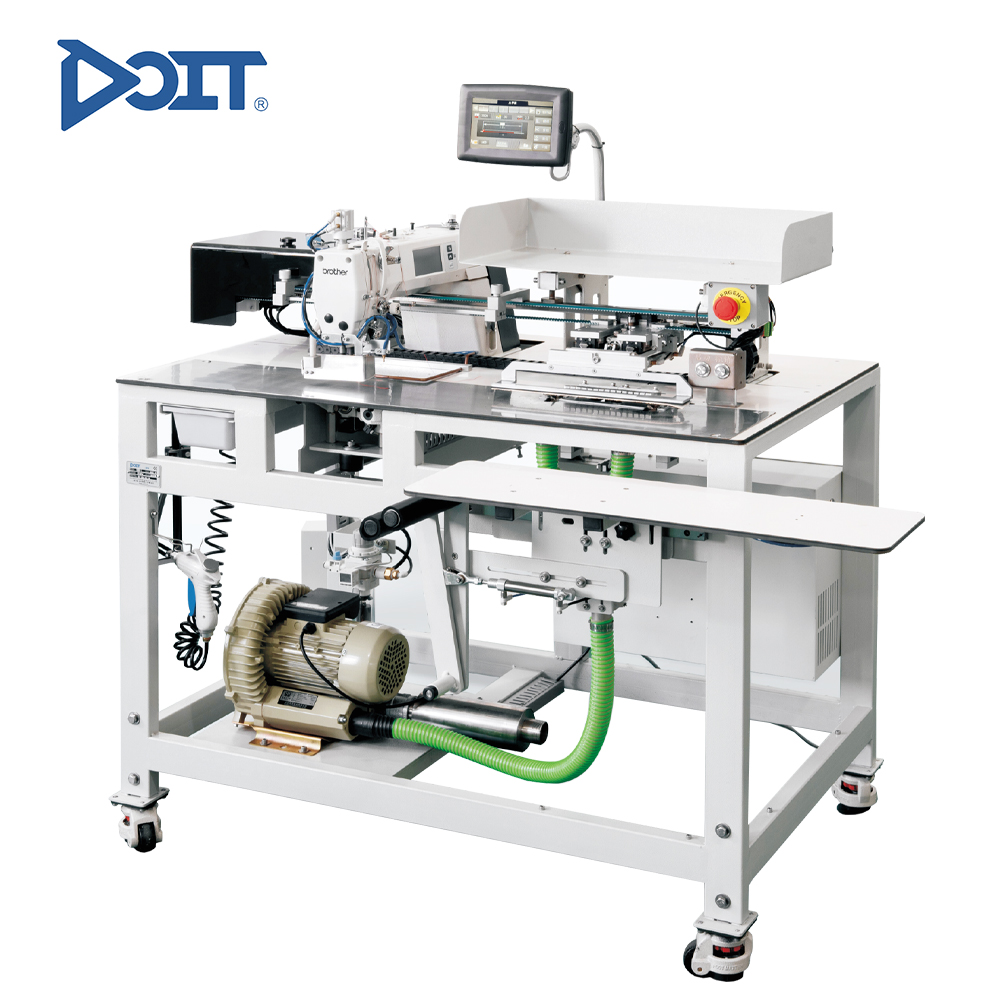

DT 9305 Automatic pocket opening sewing machine for suit pants
DT 9305
Quantity:
The auto laster pocket welting machine is a universal automatic welt pocket unit. This unit can sew all kinds of common welt pockets: straight, slanted, with or without flap. Sewing with zipper can be integrated without any problem. laster pocket welting machine sews at a high speed. Clamp transfer and all trimming systems of the sewing unit have their own drive; clamp transfer and corner cutting are controlled fully automatically by step motors. The center knife is driven separately by an electric motor.
DT 9305 | |
G.W | 245kg |
Power | AC 110V /220V / 380V |
Size | 1100*1550*1000mm |
Stitching area(MAX) | 350x200mm |
Speed scope | 200-2000rpm for 10 sections |
Stitch length | 0.1-12.7mm |
Max Speed | 2700rpm |
Needle | DP×10#--17#--25# |
Shuttle Hook | Oscillating shuttle Hook |
Presser foot type | Pneumatic |
Memory | RAM/USB/SD |
Max.number of stitche | 8,000per pattern |
Propportional sacle function | X.Y 10-200%(min0.1%) |
Outer pressure foot lifting range | 32mm |
Laser | high powerful laser cuttting installment/ 5 years warranty |
Production efficiency | 1200--1500 pcs pockets/ 8 hours |
Motor | Diect drive motor 750 W |
