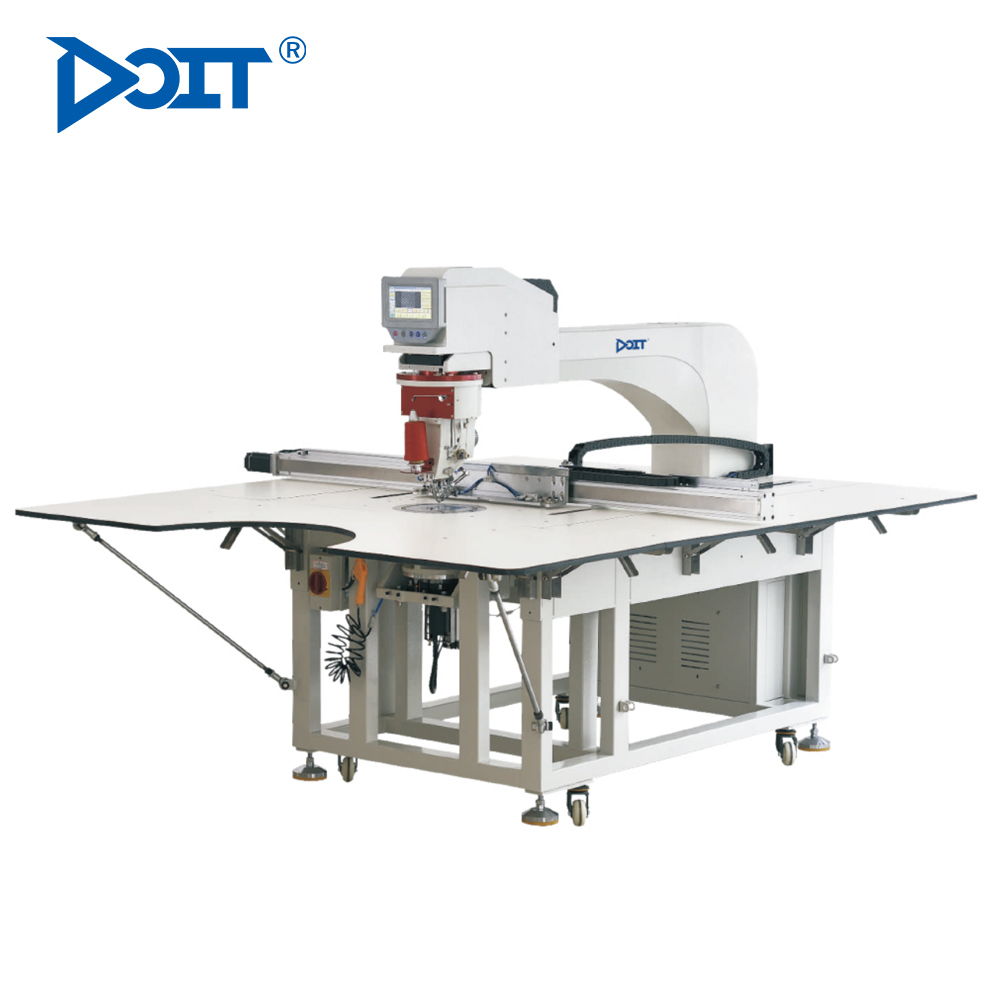

Head lifting rotating intelligent template machine
Product introduction
Head lifting rotating intelligent template machine
1.The thread trimming use motor horizontal rotation, heavy material trimming much more stable.
2.Rotary hook is vertical design, it is special for heavy material. The stitch is much perfect and stable.
3.Use 3 times Rotary Hook,stitch lengthincrease.
4.Machine head can lift, the max height is 50mm.
5.Use for car seats, bags, sofas and other kinds of heavy material products.
Head lifting rotating intelligent template machine
Model | DT-13090S |
Name | Machine Head Lifting Rotating Intelligent Template Machine |
Sewing Area | 1300mm×900mm |
360°Rotating | Servo Motor 600W |
Stitch | Intelligent template machine(3 times Rotary Hook) |
Single needle lock stitch | |
Max.Sewing Speed | 2500sti/min |
Head Lift Height | 50mm |
Feed System | X screw servo motor 600W |
Y screw servo motor 750W | |
Stitch Length | 0.05-50mm |
Max Stitches | 20000stitches/program |
Presser Foot Lift | 22mm |
Presser Foot Stroke | 0 or 2-10mm(factory setting 5mm) |
Ratary Hook | Rotary Hook |
Thread Trimming Device | Motor horizontal rotation |
Data Storage Media | USB |
Main Motor | AC Servo Motor |
Pressure | 0.4-0.6Mpa 1.7L/min |
