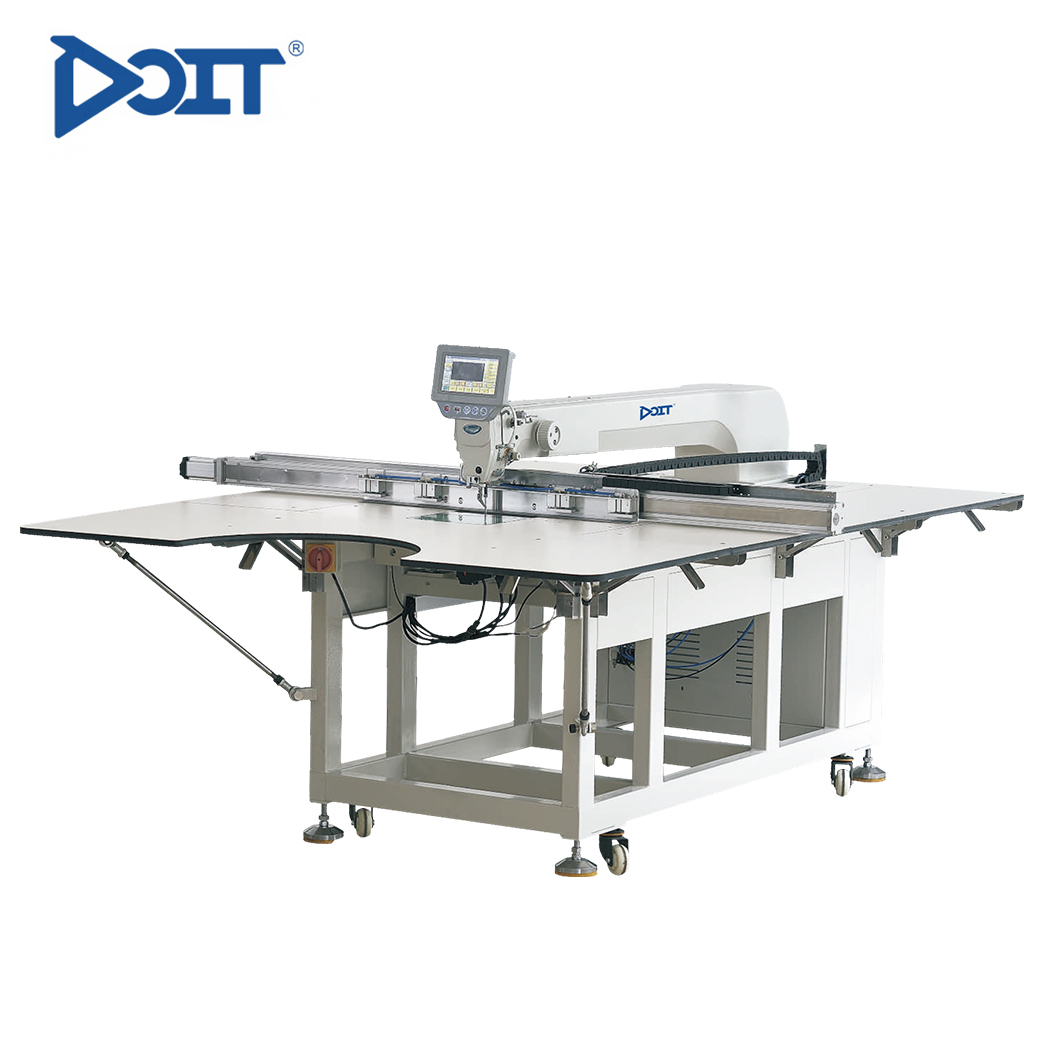

Intelligent template machine

DT 13090T
Intelligent template machine is the normal product in the template sewing machine series.Machine head design as bearing thread take-up to keep dry head and ensure clothing clean.Base plate design as whole plate,which makes the machines much more stable.Intelligent template machine has huge operate space,suitable for different clothing.
Quantity:
Contact Now
add to cart
Product Feature:

 Product introduction

Intelligent template machine

1.Intelligent template machine is the normal product in the template sewing machine series.

2.Machine head design as bearing thread take-up to keep dry head and ensure clothing clean.

3.Base plate design as whole plate,which makes the machines much more stable.

4.Intelligent template machine has huge operate space,suitable for different clothing.

 Product specifications

Intelligent template machine

Model

DT-13090T

Name

 Intelligent Template Machine

Sewing Area

1300mm×900mm

Stitch

Intelligent template machine

Single needle lock stitch

Max.Sewing Speed

3500sti/min

Feed System

X screw servo motor 600W

Y screw servo motor 750W

Stitch Length

0.05-50mm

Max Stitches

20000stitches/program

Presser Foot Lift

22mm

Presser Foot Stroke

0 or 2-10mm(factory setting 5mm)

Ratary Hook

Rotary Hook(standard rotary hook is option)

Thread Trimming Device

Standard device(circle knife)

Main Motor

AC Servo Motor 600W

Pressure

0.4-0.6Mpa 1.7L/min

 Product feature and application

Intelligent template machine

1.Machine head design as bearing thread take-up,dry head,ensure clothing clean.

2.Base plate design as whole plate, make the machine much more stable

3.Huge operate space, suitable for different clothing

4.Used in all kinds of clothing and clothing craft production
