Direct Drive Computerized Eyelet Button Hole Sewing Machine

DT 9820
Quantity:
Contact Now
add to cart

Stitch:

Product Feature:

 Product introduction

Direct drive computerized eyelet button hole sewing machine

1.The maximum sewing speed is 2,500 stitches/minute, which improves production efficiency

2.High needle drop accuracy, locks beautiful buttonholes

3.Equipped with an easy-to-use operation panel

4.low-noise sewing,providing more comfortable sewing environmen

 Product specifications

Direct drive computerized eyelet button hole sewing machine



Specifications

-00

-01

-02

Thread trimmer

Upper thread trimmer

Long thread cut

Long thread cut

Short thread cut

Lower thread trimmer

None

Long thread cut

Short thread cut

Main applications

Ladies wear

Men's wear, casual wear

Jeans

Other applications

Only the upper thread is cut by the thread trimmer. Buttonholes up to 50 mm long can be sewn.

Ladies wear,jeans,trousers

Features

Only the upper thread is cut by the thread trimmer.

All the threads are cut long by the thread trimmers.

All the threads are cut short by the thread trimmers.

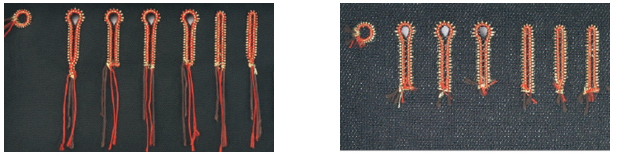

Sewing shape

Sewing length

Eyelet buttonhole : 8-50 mm

Eyelet buttonhole : 8-42 mm

L1422：14-22mm*3

L1826：18-26mm

L2230：22-30mm

L2634：26-34mm*3

L3442：34-42mm*3

Length of work clamp (Standard)

30mm

30mm

Length of hammer (Standard)

22mm

24mm

Length of hammer (Accessory)

30mm

28mm

Sewing speed

1,000-2,500sti/min

Stitch pitch

0.5～2.0mm

Zigzag width

1.5-5.0 mm (Up to 4.0 mm in mechanical, up to 5.0 mm with zigzag width compensation)

Zigzag width (Factory setting)

3mm

Taper bartack length

0-20mm

Height of work clamp

12 mm as standard (Available up to 16 mm)

16mm

Starting method

Foot switch (Treadle type, Two-pedal type), Hand switch (Two-lever type)

Feed mechanism

Intermittent feed by 3 pulse motors (X, Y, 胃)

Needle*4

DOx558 Nm80 - Nm120 (SCHMETZ)

Needle(Factory setting)*5

DOx558 Nm100

DOx558 Nm90

DOx558 Nm110

Languages supported for operation panel

Japanese, English, Chinese, German, French, Spanish, Italian, Portuguese, Turkish, Indonesian, Vietnamese and Russian

Safety equipment

Emergency stop function and built-in automatic stopping device activated by safety circuit in case of trouble

Upper shaft motor

AC servo motor 550W

Air pressure

Main regulator: 0.5 Mpa, Hammer pressure regulator: 0.4 MPa

Air consumption

43.2 l/min. (8 cycles/min.)

Weight

Machine head: Approx. 120 kg.,Operation panel: Approx. 0.6 kg., Control box: 14.2-16.2 kg. (depending on the destination)

Power supply

Single phase 100V/200V, 3-phase 200V/220V/380V/400V, 400VA

 Product application:

For heavy material, light material, leather, jeans, knitted fabric etc. The buttonhole patterns can be divided eyelet buttonhole and round buttonhole.
