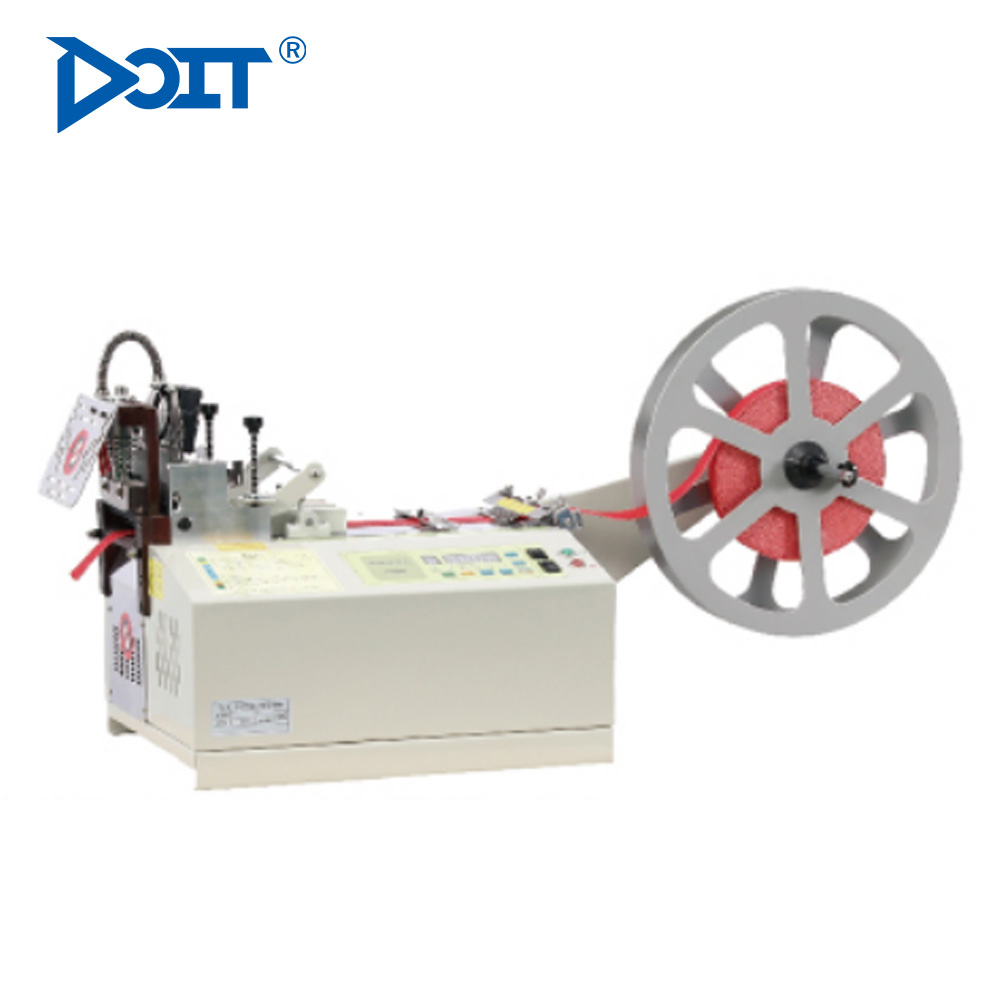

DT 110LR Computerized Auto Tape Cutting Machine(cold and hot knife)

DT 110LR
Quantity:
Contact Now
add to cart
Special features:
High speed: it can cut 95 pcs per minute. (50 mm long)
Accuracy: Cut-length is accurate owing to a stepping motor.
Cutting type: Melting & cutting by hot knife, tapes are cutneatly without fraying and installed with anti-static electricitydevice.
Automatic operation: lt works automatically only by settingspeed length quantity and temperature, lt stopsautomatically if materials run out during operation.
Compensation: After actual length data inputted, accuratelycut out the length meet the system settings.
Fault self-check:cutting sensor error,no supply,the errorcode will show on the system panel directly if the faulthappened.
Memory: Set-length, set-q' ty & set-speed are not erasedeven if power off & on.

Applications:Belt loop, bag band, shrink tube, string, elastic band, plasticzipper etc.

Model
DT 110LR
Cutting speed
95pcs/min
Cutting length
20-99999mm
Max cutting width
10-50mm
Application
Velcro tape
Working power
0.64KW
N.W./G.W.
22/17kgs
 Measurement
560*420*405mm = 0.094 CBM
Main Features & Specifications
(1)Cutting length is accurate owing to its stepping motor.  (2)With hot knife it is ideal for ribbon tape or woven label tape
(3)Can set quantity cutting times to achieve good quality cut (4)Can set the cutter speed for some thick and strong materials to achieve cutting effective                                                      (5)Adopt PLC system,mulit language conversion by touch panel,the page function intuitive and easy to operate,setting is convenient.                                                                                        (6)When cutting sensor error,no material supply,the error code will show on the system panel directly if the fault happened.           (7)It works automatically by only setting cutting length and quantity.It stops automatically when materials run out.
(8)Can be penumatic system for optional
