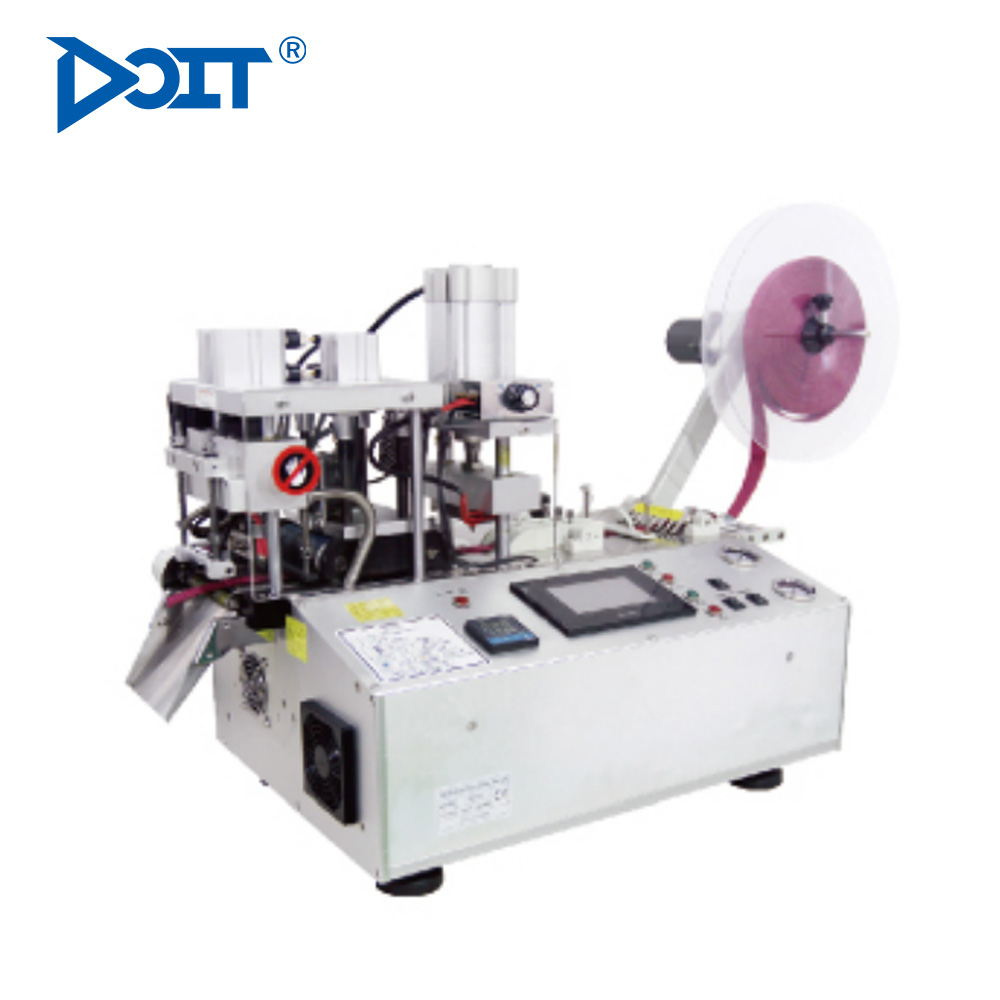

DT 150HX Computerized Auto Multi-function Tape Cutting Machine (right/bevel angle)
DT 150HX
A versatile Tape Cutting Machine with automatic functions and right/bevel angle options.
Quantity:
Special features:
High speed: lt can cut 150 pcs per minute.(e.p. 50 mm long)
Accuracy: Adopt high-accuracy stepping motor drive.
Multi-Angle: By use of multi-angle cut function of straight knife,it cancut many shapes as parallelogram,rhombic,trapeaoid ,etc by only setthe length,quantity,angle.
Punching Device: According to the needs of user,it can punch differentsize of the diameter of the holes.
Cutting Type: The blade is made of high quality steel.Hot cutter can cutribbon.thin woven belt and the hot knife melts the end of the tape,cutting is sealed neatly, smoothly without fraying.
Automatic operation: it works automatically only by setting length ,quantity and angle.
Computerised:Automatic work,stop.The special fault byself-diagnosis.direct show the fault problem on the screen,it will easy for you to find clear way to repair.
Automatic stopper: lt stops automatically if materials run out duringoperalion.
Memory: Set-length,set quantity&set speed are not erased even ifpower off&on.
Applications:Ail kinds of woven belt,velcro,shoelace,plastic soft tube,computercable,label etc.
DT150HX Computerized cloth tape cutting machine, cold and hot knife
1. With hot knife cutting, tapes are cut neatly without fraying and installed with anti-static electricity device. 2. Works automatically only by setting speed, length, quantity and temperature. Also stopping automatically if materials run out during operation. 3. With fault self-check function. If the fault happened like cutting sensor error, no supply, the error code will show on the system panel directly. 4. With memory function: Setting length, quantity and speed won't be erased even if power off & on. 5. Applications: Belt loop, bag band, shrink tube, string, elastic band, plastic zipper, etc.
Model | DT 150HX |
Cutting length | 30-99999 |
Cutting width | 100mm |
Cutting speed | 150 pcs one minute |
Voltage | 220/110V |
