What are common sewing machine problems?

Even the best industrial machines can run into trouble. Issues like needle breakage, thread shredding, and stitch skipping are the main reasons for costly downtime on any production line.

Here’s a look at some of the most common sewing machine problems, along with quick fixes and preventative tips for factory floors.

🧵 Top 5 Sewing Machine Problems & How to Fix Them

1. ❌ Skipped Stitches

The needle moves but the upper thread doesn't catch the bobbin, leaving gaps in the seam.

• Likely Causes:

  • Needle: Blunt, bent, or incorrectly inserted needle.

  • Needle/Thread Mismatch: Needle eye too small or needle too fine for the thread.

  • Timing Issue: The relationship between the hook and needle is off, often from a slight knock or long-term wear.

  • Hook Damage: The sewing hook itself might be blunt or chipped.

• 🛠️ Fast Fix: Immediately check and replace the needle, ensuring it’s fully inserted in the correct orientation. Try re-threading the entire machine. If the problem persists after a new needle, the machine's timing may need a professional adjustment. Also, ensure you are using the correct needle system for your machine (e.g., the widely compatible 135x17 system used in our DOIT machines).

2. 🪡 Needle Breakage

The needle snaps, potentially damaging the hook, needle plate, or product.

• Likely Causes:

  • Operator Error: Pulling the fabric instead of letting the feed dogs guide it.

  • Material Issues: Needle too thin for the fabric's weight, e.g., using #11 on thick denim layers.

  • Installation Problem: Needle not pushed fully up into the clamp or the screw not tightened.

  • Clogged Feed: A build-up of lint prevents fabric from feeding smoothly, stressing the needle.

• 🛠️ Fast Fix: Stop and remove the broken needle pieces immediately. Install a new, properly-sized needle and clean the feed dogs thoroughly.

3. 🔄 Thread Tension Trouble (Loops & Puckers)

An unbalanced stitch: loops on the fabric's underside usually indicate upper tension is too loose, while loops on top often mean it's too tight.

• Likely Causes:

  • Threading Error: Upper thread slipped out of a tension disc or missed the take-up lever, causing zero tension on the top thread.

  • Tension Setting: The tension dial is set incorrectly for the fabric or thread type.

  • Bobbin Case: Lint in the bobbin case is preventing smooth bobbin thread flow.

• 🛠️ Fast Fix: Fully re-thread the machine. Check the bobbin is wound evenly and inserted correctly. Wipe the bobbin area with a lint-free cloth.

4. 🧵 Thread Breakage

The thread shreds or snaps completely during sewing, stopping production.

• Likely Causes:

  • Sharp Needle Issues: Needle eye has a burr or a dull needle creates excess heat that melts the thread.

  • Needle/Thread Mismatch: Eye is too small for the thread, causing friction.

  • Tension Setting: Tension is set too tight for the thread weight.

  • Tension Discs: Lint or rust on the tension discs creates inconsistent drag.

  • Old Thread: The thread is old, brittle, or poor quality.

• 🛠️ Fast Fix: Examine the needle for a burr and replace it. Re-check the threading of the entire machine. Clean the tension discs with a small, stiff card.

5. 🛑 Machine is Jammed & Won't Move

The handwheel is stuck, and the machine won't cycle.

• Likely Causes:

  • Thread Nest: A massive tangle of upper thread is caught in the hook area.

  • Operator Error: Sewing with the presser foot still raised, which prevents the top tension from engaging and causes the bobbin thread to tangle.

  • Foreign Object: A piece of broken needle or pin is lodged in the feed mechanism.

• 🛠️ Fast Fix: Turn off the machine immediately. Gently rotate the handwheel backward to free the jam. Remove the needle plate and bobbin case to cut out tangled thread.

🛡️ Prevention is Profitable: Your Factory Checklist

For these problems, the best solution is a regular maintenance routine. Here’s a quick checklist to keep machines running smoothly:

• 🔩 Needle Replacement: Change needles after every 8 hours of operation (more often if sewing heavy material). Always use the correct needle type (e.g., sharp point for woven, ballpoint for knits).

• 🧼 Lint Removal: At the start of every shift, remove the needle plate and bobbin case to blow out lint from the rotary hook area.

• 💧 Proper Lubrication: Use only high-quality white mineral oil designed for high-speed machines. The DOIT DT-35 Industrial Sewing Machine Oil is specifically formulated to prevent gum and sludge, ensuring smooth, continuous operation.

• ⚙️ Pressure & Feeding: Adjust presser foot pressure for different material thicknesses. For sticky materials like vinyl, a Teflon or roller foot can make a huge difference.

🚀 Minimize Downtime with DOIT Group

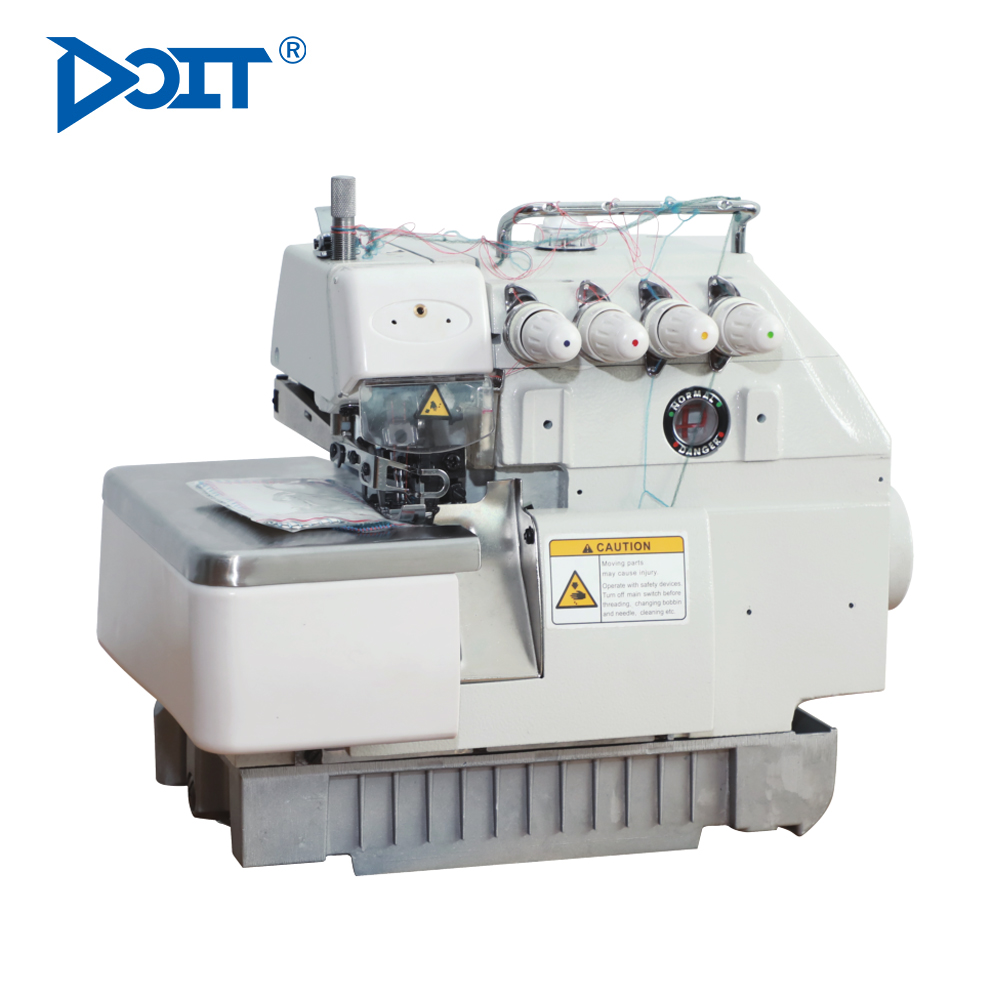

Understanding these common issues is the first step to preventing them. The second step is to invest in machines built for industrial reliability. All DOIT industrial lockstitch and overlock machines—like the DT 5550 (the classic workhorse) and the DT 8800-D4 (with an energy-saving direct-drive servo motor)—are designed with your production line in mind. They use standard 135x17 needles and are backed by ISO9002-certified quality, helping you focus on output, not constant repair.

Ready to keep your production line moving? Contact DOIT Group for a free consultation on selecting the right, low-maintenance machine for your specific operation.
